Date: 5/03/2025 23:32:46
From: dv
ID: 2257212
Subject: Baudot Code

The first practical use of binary coding of alphabetic characters was the Baudot Code, used by Émile Baudot’s multiplexed telegraph machine in the 1870s. It was a 5 bit system: there were special characters for “erasure” (ie backspace), or to select alphabetical or numeric register.

The sender used a keyboard of just five keys, one for each bit, and had to keep time with a regular cadence. I assume they just had to learn to think in binary to operate this thing. Nonetheless it did find significant use in the UK and France as the transmission rate was higher than its predecessor, Morse Code.

In 1900, New Zealand inventor Donald Murray further developed Baudot’s system. Murray’s transmission equipment allowed an operator to enter the text on a qwerty keyboard. At the receiving end, a punched strip was produced that could be converted into alphabetic output by a second machine. Murray also rejigged the code a bit so that the most commonly used letters required fewest holes punched, and added more control characters such as line feed and carriage return.

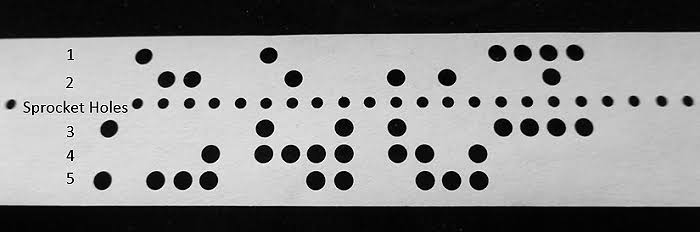

The tape would look something like this.

Variations on the Baudot-Murray system remained common until ASCII became standard in the 1960s.

The transmission rate unit baud is named for Baudot.

Reply Quote

Date: 5/03/2025 23:35:31
From: sarahs mum
ID: 2257213
Subject: re: Baudot Code

i remember hating paper tape now.

Reply Quote

Date: 6/03/2025 00:14:49
From: Michael V
ID: 2257234
Subject: re: Baudot Code

sarahs mum said:


i remember hating paper tape now.

Ha! Me too. In the mornings.

After the Christmas break at Births Deaths and Marriages, we came in to find the office festooned with paper tape. The punch-holes in the tape read “MERRY CHRISTMAS” and “MERRY BLOODY CHRISTMAS”.

The programmer had worked right through the break to sort out some problems, and was rightly pissed off. I saved some pieces of tape and used to send it out to other Police teletype machines at Christmas.

I have those tapes somewhere.

Reply Quote

Date: 6/03/2025 01:06:57
From: sarahs mum
ID: 2257242
Subject: re: Baudot Code

Michael V said:


sarahs mum said:

i remember hating paper tape now.

Ha! Me too. In the mornings.

After the Christmas break at Births Deaths and Marriages, we came in to find the office festooned with paper tape. The punch-holes in the tape read “MERRY CHRISTMAS” and “MERRY BLOODY CHRISTMAS”.

The programmer had worked right through the break to sort out some problems, and was rightly pissed off. I saved some pieces of tape and used to send it out to other Police teletype machines at Christmas.

I have those tapes somewhere.

i remember we had a boot strap for a pdp11 that was a front-end processor connecting customers via phone. The tape would rip at the most inconvenient times. sometimes it would not accept a new one. sod of a thing.

Reply Quote

Date: 6/03/2025 08:46:20
From: Michael V
ID: 2257278
Subject: re: Baudot Code

sarahs mum said:


Michael V said:

sarahs mum said:

i remember hating paper tape now.

Ha! Me too. In the mornings.

After the Christmas break at Births Deaths and Marriages, we came in to find the office festooned with paper tape. The punch-holes in the tape read “MERRY CHRISTMAS” and “MERRY BLOODY CHRISTMAS”.

The programmer had worked right through the break to sort out some problems, and was rightly pissed off. I saved some pieces of tape and used to send it out to other Police teletype machines at Christmas.

I have those tapes somewhere.

i remember we had a boot strap for a pdp11 that was a front-end processor connecting customers via phone. The tape would rip at the most inconvenient times. sometimes it would not accept a new one. sod of a thing.

Luckily our IBM 360 was not connected to anything except (variously) the peripherals (TTY, input typewriters, HDDs, tapes, printer).

I’m glad I moved to the Police Department before they found out that I didn’t really understand.

Reply Quote
